API Documentation: Vehicles Tracking

GET /api/units/:usdot

This endpoint retrieves live tracking details for vehicles in our network. It provides information such as vehicle location, unit identifier, VIN, and more.

URL

https://api.onroadnetworks.com/api/units/:usdot

Parameters:

  • :usdot (required): The USDOT number associated with the units.

Authentication

To access this endpoint, the following headers must be included in the request:

Key:x-api-key
Value:API key value
Key:provider-token
Value:Provider token value

Example

cURL
curl --location --request GET 'https://api.onroadnetworks.com/api/units/:usdot' --header 'x-api-key: ${key}' --header 'provider-token: ${token}'

Response format

JSON
{
  "units": [{
    	"truckNumber": "string",
    	"vin": "string",
    	"coordinates": { "lat": 0.0, "lng": 0.0 },
    	"timestamp": "string date",
        "licensePlate": { "state": "string", "number": "string" },
        "assetType": "string",
        "unixTimestamp": 0,
        "deviceId": "string",
		"make": "string",
 	    "model": "string",
 	    "year": 0,
 	    "fuelType": "string"
  		},
  		{...},
  		{...}]
}

Generating API Key

API keys can be generated by following the steps below:

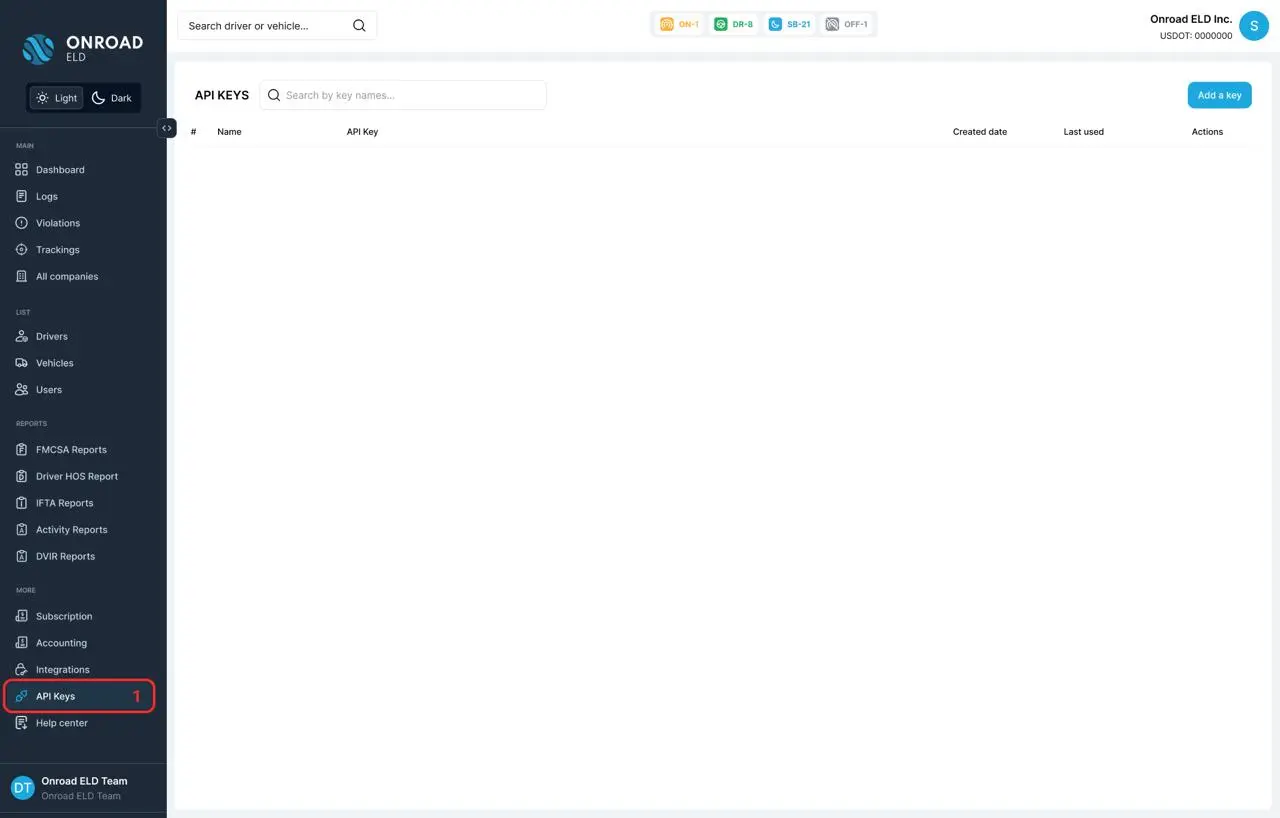

  1. In the left sidebar, navigate to the “API Keys” section under “More”

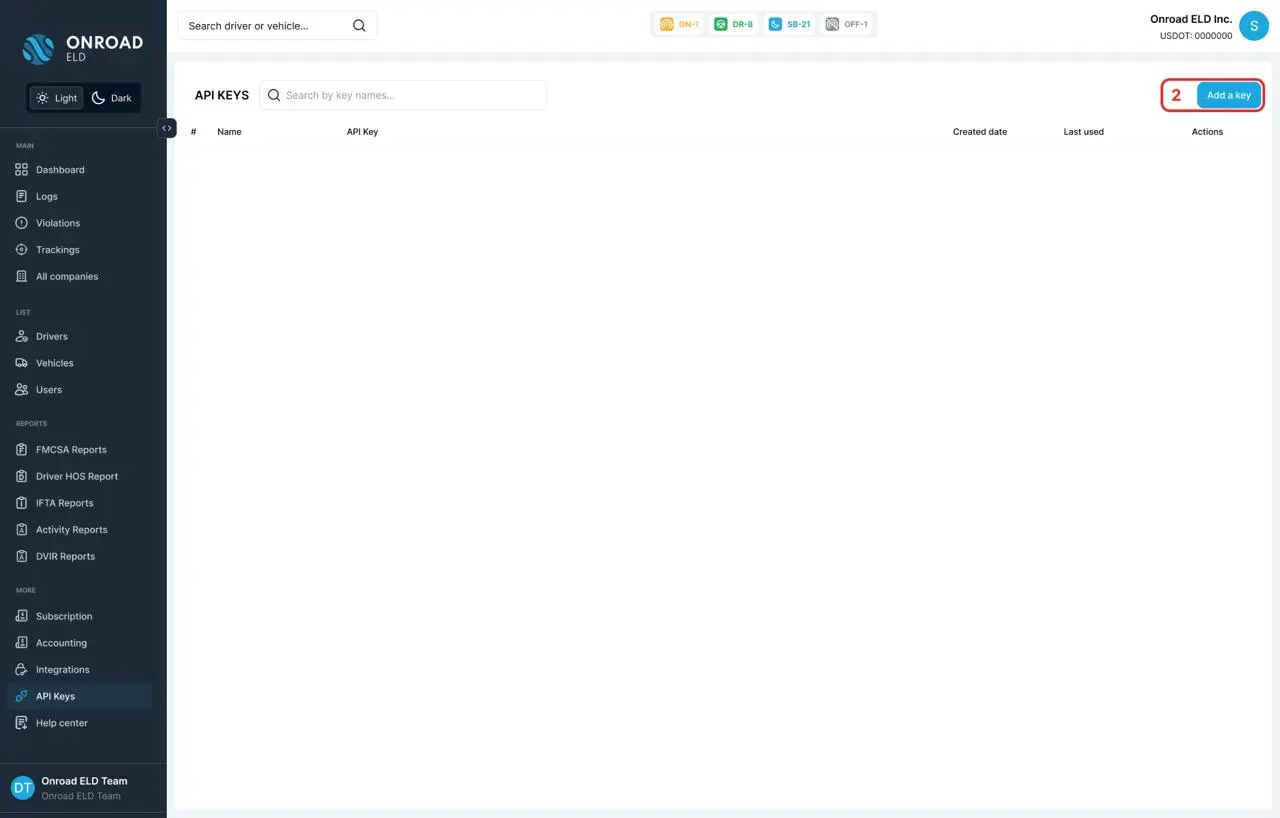

  2. Click the “Add a key” button in the top right

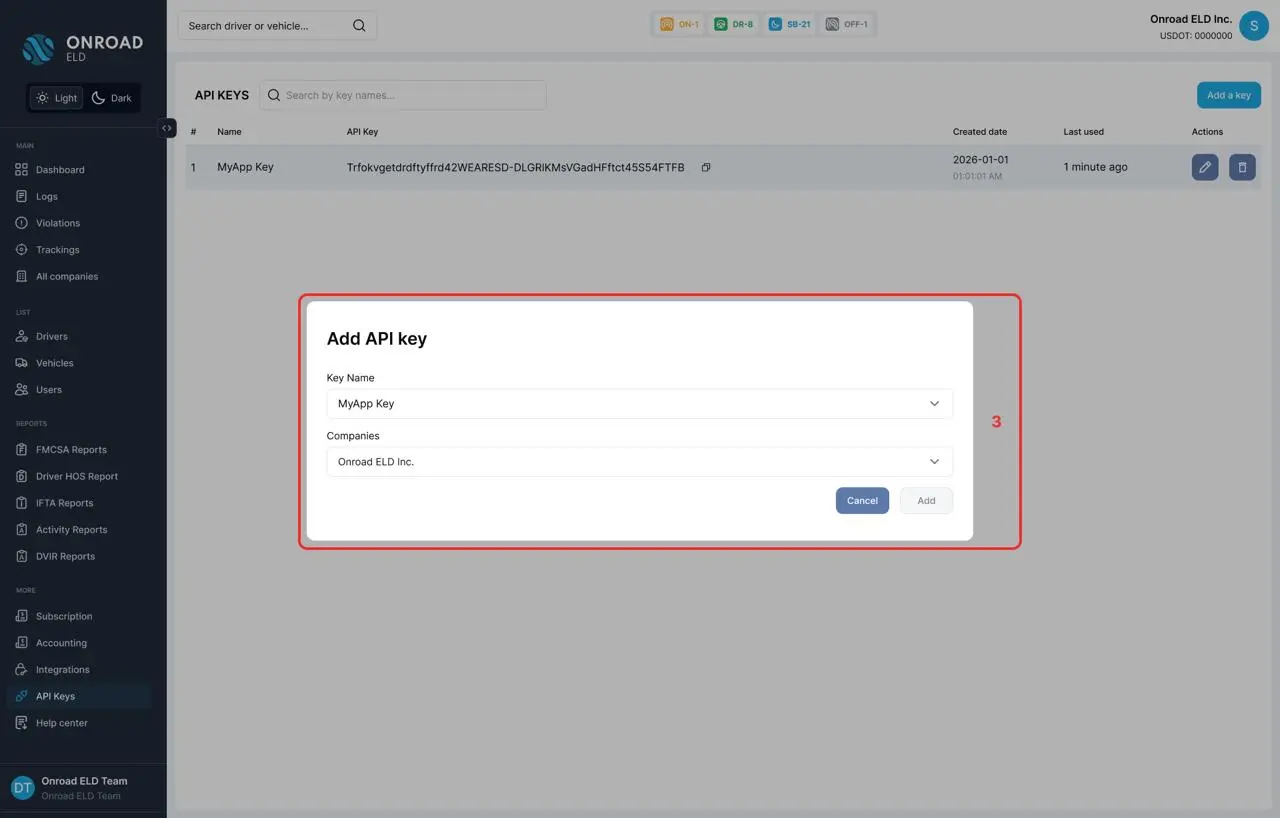

  3. Fill in the key name and configure access settings, then submit the form
Step №1
First step
Step №2
Second step
Step №3
Third step

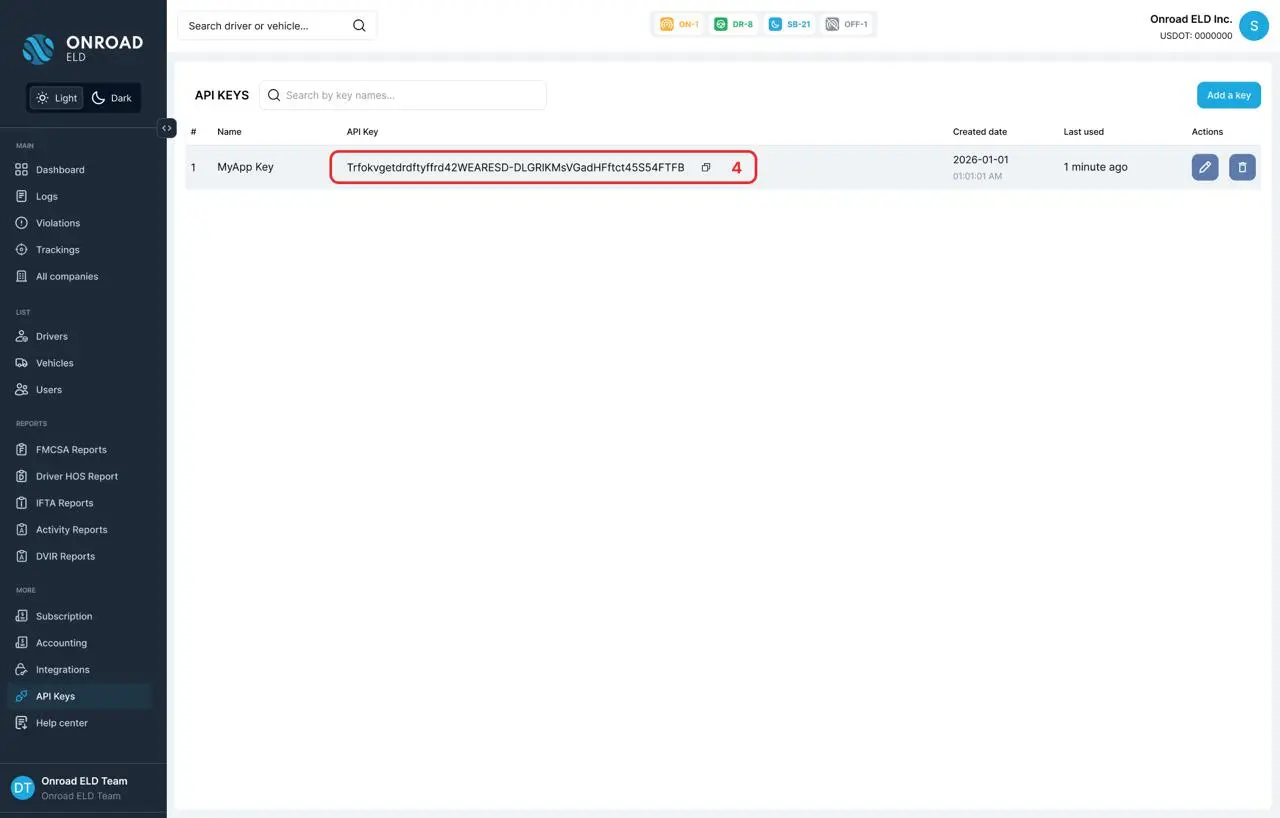

Step №4
Fourth step

Test Data

Endpoint:https://api.onroadnetworks.com/api/units/:usdot
USDOT:0
x-api-key:2b2y38VUi9AWSSUQRn5GD8eKLuKFlORBV7rk-8dCmFTAonRoadELD
provider-token:1R8xFqCfchWVnjjQonRoadELD
cURL
curl --location --request GET 'https://api.onroadnetworks.com/api/units/0' --header 'x-api-key: 2b2y38VUi9AWSSUQRn5GD8eKLuKFlORBV7rk-8dCmFTAonRoadELD' --header 'provider-token: 1R8xFqCfchWVnjjQonRoadELD'

Notes

  • Ensure that the API key and provider token are kept secure and not exposed in client-side code.
  • The response includes all units currently active for the given USDOT number; if no units are active, the “units“ array will be empty.
  • All timestamps are in ISO 8601 format.
